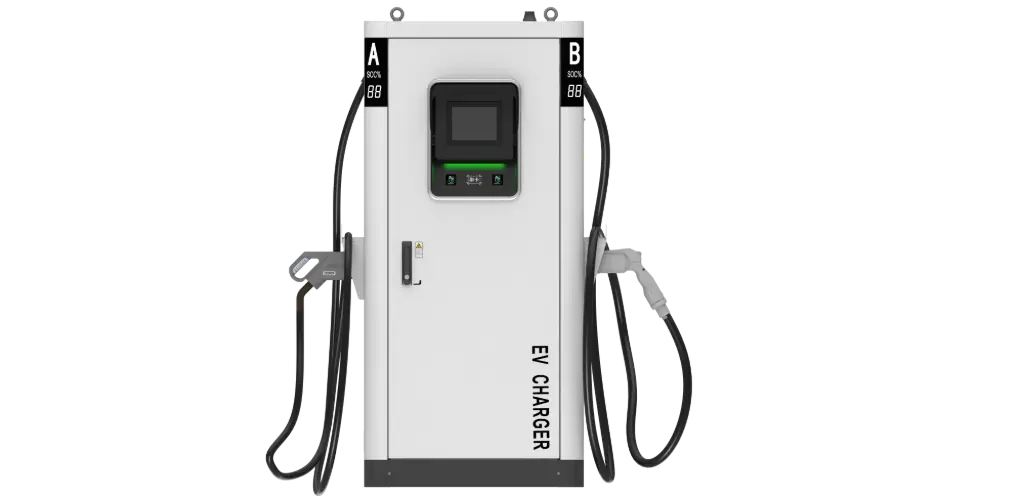

60/120/180 kW DC Charger
High-Performance DC Fast Charging for Every Site Requirement
| Charger Type: DC |
| Pedestal Type: Without Pedestal |
The 60 kW, 120 kW, and 180 kW DC Chargers deliver powerful, high-speed charging designed for commercial and public use. Built for reliability and scalability, these units enable businesses to serve more EV drivers efficiently while maintaining optimal performance.
Rated Power | 60/120/180kW |
AC Rated Voltage | AC400V +/-10% |
AC Rated Current | 92/184/276A |
Maximum AC Input Current | 102/205/307A |
Rated Frequency | 50/60Hz |
Grid Type | TN-S/TN-C-S/TT |
Grid Connection | 3P+N+PE |
DC Output Voltage Range | DC150V-1000V |
Constant Power Range | DC300-1000V |
DC Output Current | 200/300A |
Peak Efficiency | >=95% |
Power Factor | >=0.99 |
User Authentication | APP, RFID, QR Code |
HMI | 7-inch Touch Screen |
Connectivity | LAN/4G/Wi-Fi |
Communication Protocol | OCPP 1.6J |
Vehicle & Charger Communication | ISO15118/DIN70121 |
Cable Length | 4.5 meters |
Dimensions (WxDxH) | 700x400x1550mm/800x600x1700mm |
Weight | 195/310/355kg |
IP Rating | IP54, IK10 (Screen IK08) |
Storage Temperature | 40~70°C |
Operating Temperature | -25~50°C (50~65°C degrading) |
Operating Humidity | 5%~95% RH (no condensation) |
Altitude | ≤2000m (2000~4000m degrading) |
Cooling Method | Forced Air Cooling |
Certificate | CE, UKCA, RCM, RoHS, REACH |
Available with European (CCS2) or Chinese (GB/T) standard charging ports, the charger can be customized to fit specific site or project demands. This configurability ensures seamless integration with the charging standards your operations require. Each unit has two (2) charging guns.
Product Overview
Technical specifications and compatibility details
Greenstrum’s 60/120/180kW DC Charger is engineered to provide reliable, user-friendly charging for today’s EV owners. With smart monitoring, app integration, and adaptive load management, it’s built for performance and peace of mind.
Power Output
Delivering a steady 60, 120, or 180 kW of DC power, this unit ensures consistent high-speed charging performance across compatible EVs. Engineered for robust commercial and public deployments, it supports reliable mid- to high-power fast charging, with installation requirements that match the demands of advanced electrical infrastructure.
Connectivity
The unit supports LAN, 4G, and Wi-Fi connectivity, ensuring stable and flexible communication across different site setups. This allows seamless integration with a software platform for monitoring, control, and remote support.
