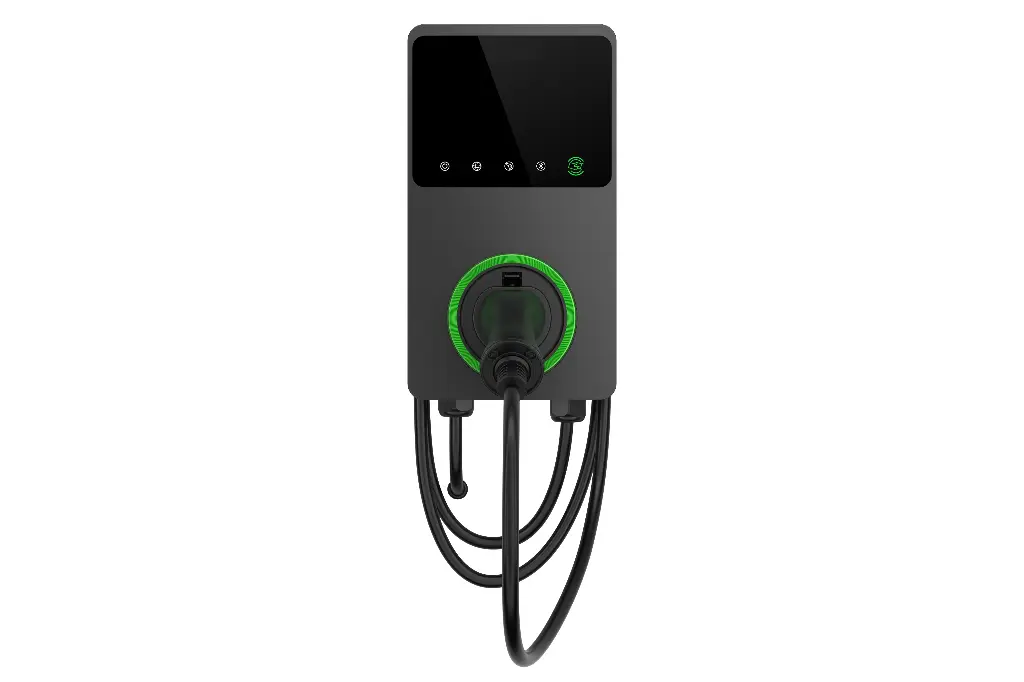

7/22 kW AC Commercial Charger
Smart AC Charging Solutions for Commercial Properties and Businesses
| Charger Type: AC |
The 7 kW and 22 kW AC Commercial EV Chargers provide dependable, long-duration charging ideal for offices, malls, groceries, hotels, and other locations where users typically stay for extended periods. Built for reliability and everyday commercial use, these chargers offer convenient, steady charging throughout the day while ensuring consistent performance. With flexible installation options and smart connectivity, they integrate seamlessly into commercial environments and create opportunities for revenue generation through billable charging sessions.
Rated Power | 7/22kW |
AC Rated Voltage | AC230V+/-15% / AC400V +/-15% |
AC Rated Current | 32A |
Rated Frequency | 50/60Hz |
Grid Type | TN-S/TN-C-S/TT |
Grid Connection | 1P+N+PE / 3P+N+PE |
Residual Current Detection Protection | AC 30mA + DC 6mA |
Peak Efficiency | >=95% |
Power Factor | >=0.99 |
User Authentication | APP, RFID, QR Code |
Connectivity | Bluetooth/LAN/4G/Wi-Fi |
Communication Protocol | OCPP 1.6J |
Cable Length | 5 meters |
Dimensions (WxDxH) | 187x85x336mm |
IP Rating | IP65 |
Storage Temperature | -40~85°C |
Operating Temperature | -40~55°C |
Operating Humidity | 5%~95% RH (no condensation) |
Altitude | ≤2000m (2000~4000m degrading) |
Cooling Method | Forced Air Cooling |
Safety Compliance | IEC 61851-1, IEC 69255, EN50663, EN50665 |
Certificate | CE (TUV) |
Safety Protection | Overcurrent, Overvoltage, Undervoltage, Integrated Surge Protection, PME (UK) |
Our commercial AC chargers are available in two configurations: a fixed Type 2 cable, which follows the widely adopted charging standard being pushed across the market, and a socket-type version that offers greater flexibility by accommodating both Type 2 and GB/T charging connectors. This versatility ensures compatibility with a broad range of EVs and allows businesses to adapt to varying site or vehicle requirements—whether in offices, malls, hotels, or public parking areas.
Product Overview
Technical specifications and compatibility details
Greenstrum’s 7/22kW AC Commercial Charger is engineered to provide reliable, user-friendly charging for today’s EV owners. With smart monitoring, app integration, and adaptive load management, it’s built for performance and peace of mind.
Power Output
Delivering a dependable 7 kW or 22 kW of AC power, this charger provides consistent, reliable charging for a wide range of EVs. It is designed for everyday commercial use, offering efficient long-duration charging with straightforward installation requirements.
Connectivity
The unit supports Bluetooth, LAN, 4G, and Wi-Fi connectivity, ensuring stable and flexible communication across different site setups. This allows seamless integration with a software platform for monitoring, control, and remote support.
